TorusFinder

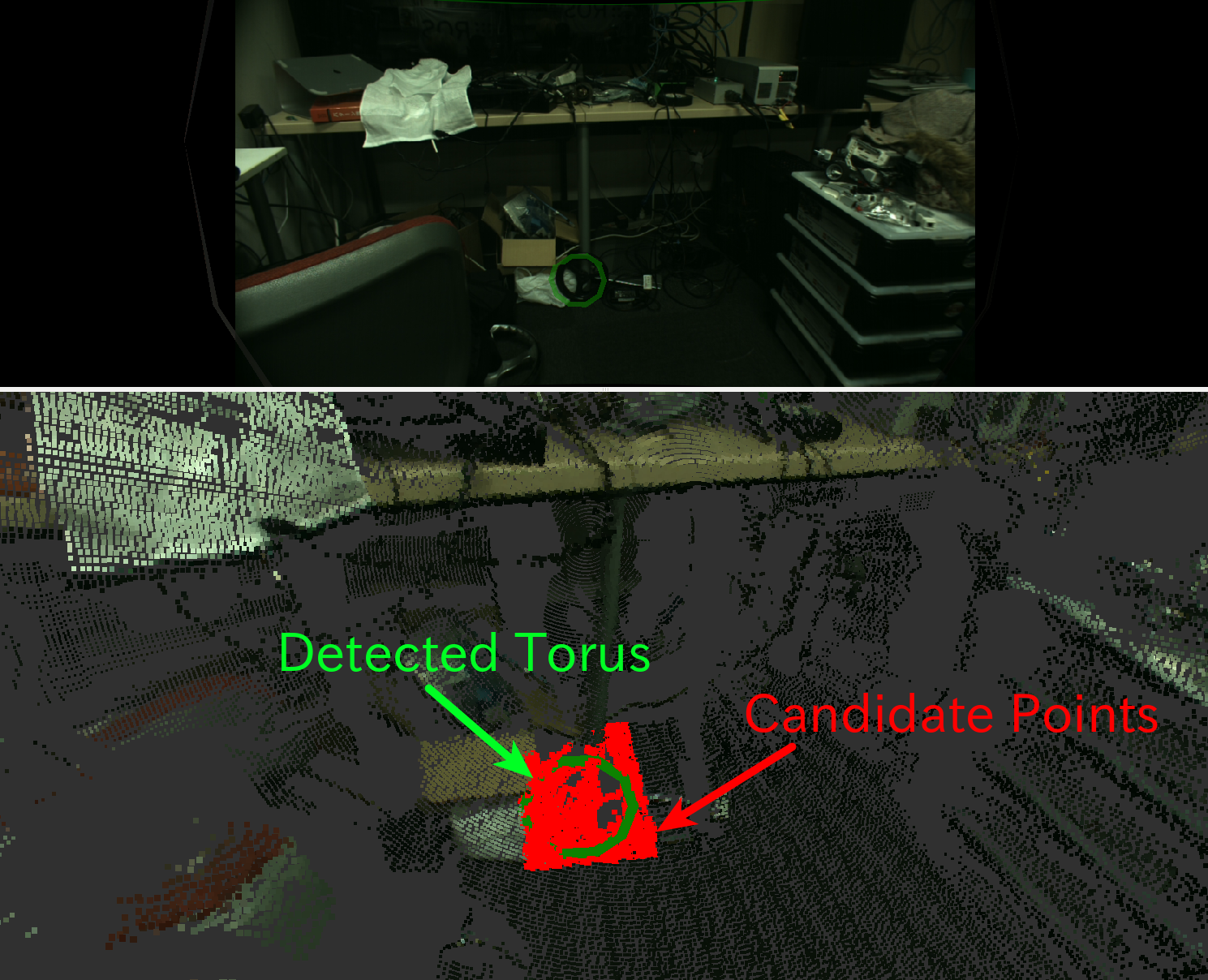

../../_images/torus_finder.png

Find a torus out of pointcloud based on RANSAC with 3-D circle model.

Subscribing Topic

  • ~input (sensor_msgs/PointCloud2)

    Input pointcloud. You may need to choose good candidates of pointcloud.

  • ~input/polygon (geometry_msgs/PolygonStamped)

    Input polygon. You can use this topic as well as ~input.

    Vertices of the polygon will be used for detecting torus.

Publishing Topic

  • ~output (jsk_recognition_msgs/Torus)

    Output of detection.

  • ~output/inliers (pcl_msgs/PointIndices)

  • ~output/coefficients (pcl_msgs/ModelCoefficients)

    Inliers and coefficients which represents detection result.

  • ~output/array (jsk_recognition_msgs/TorusArray)

    Array of torus. It will be used for visualization.

  • ~output/pose (geometry_msgs/PoseStamped)

    Publish result of detection as geometry_msgs/PoseStamped

  • ~output/with_failure (jsk_recognition_msgs/Torus)

  • ~output/with_failure/array (jsk_recognition_msgs/TorusArray)

    Output of detection with failure information.

  • ~output/latest_time (std_msgs/Float32)

    latest computation time

  • ~output/average_time (std_msgs/Float32)

    average computation time

Parameters

  • ~use_hint (Bool, default: False)

    Whether to set hint axis which we need to search for a model perpendicular to.

  • ~initial_axis_hint (Array of Float, default: [0, 0, 1])

    The axis along which we need to search for a model perpendicular to.

    This parameter is enabled only when ~use_hint is True.

  • ~use_normal (Bool, default: False)

    Whether to use normal field of input pointcloud.

Parameters below can be changed by dynamic_reconfigure.

  • ~algorithm (String, default: RANSAC)

    Type of sample consensus method to use.

    Choose one from RANSAC, LMEDS, MSAC, RRANSAC, RMSAC, MLESAC and PROSAC.

  • ~min_radius (Double, default: 0.1)

  • ~max_radius (Double, default: 1.0)

    Minimum and maximum radius of torus in meters.

  • ~min_size (Integer, default: 10)

    Minimum number of inliers.

  • ~outlier_threshold (Double, default: 0.01)

    Outlier distance threshold used in RANSAC in meters.

  • ~max_iterations (Integer, default: 100)

    Maximum number of iterations of RANSAC.

  • ~eps_hint_angle (Double, default: 0.1)

    Maximum allowed difference between the model normal and the given axis in radians.

    This parameter is used only when ~use_hint is True.

  • ~voxel_grid_sampling (Bool, default: False)

    Whether to downsample ~input before detection.

  • ~voxel_size (Double, default: 0.02)

    Leaf size of voxel grid in meters.

    This parameter is used only when ~voxel_grid_sampling is True.

Sample

roslaunch jsk_pcl_ros sample_torus_finder.launch
