EnvironmentPlaneModeling

What Is This

../../_images/environment_plane_modeling.png

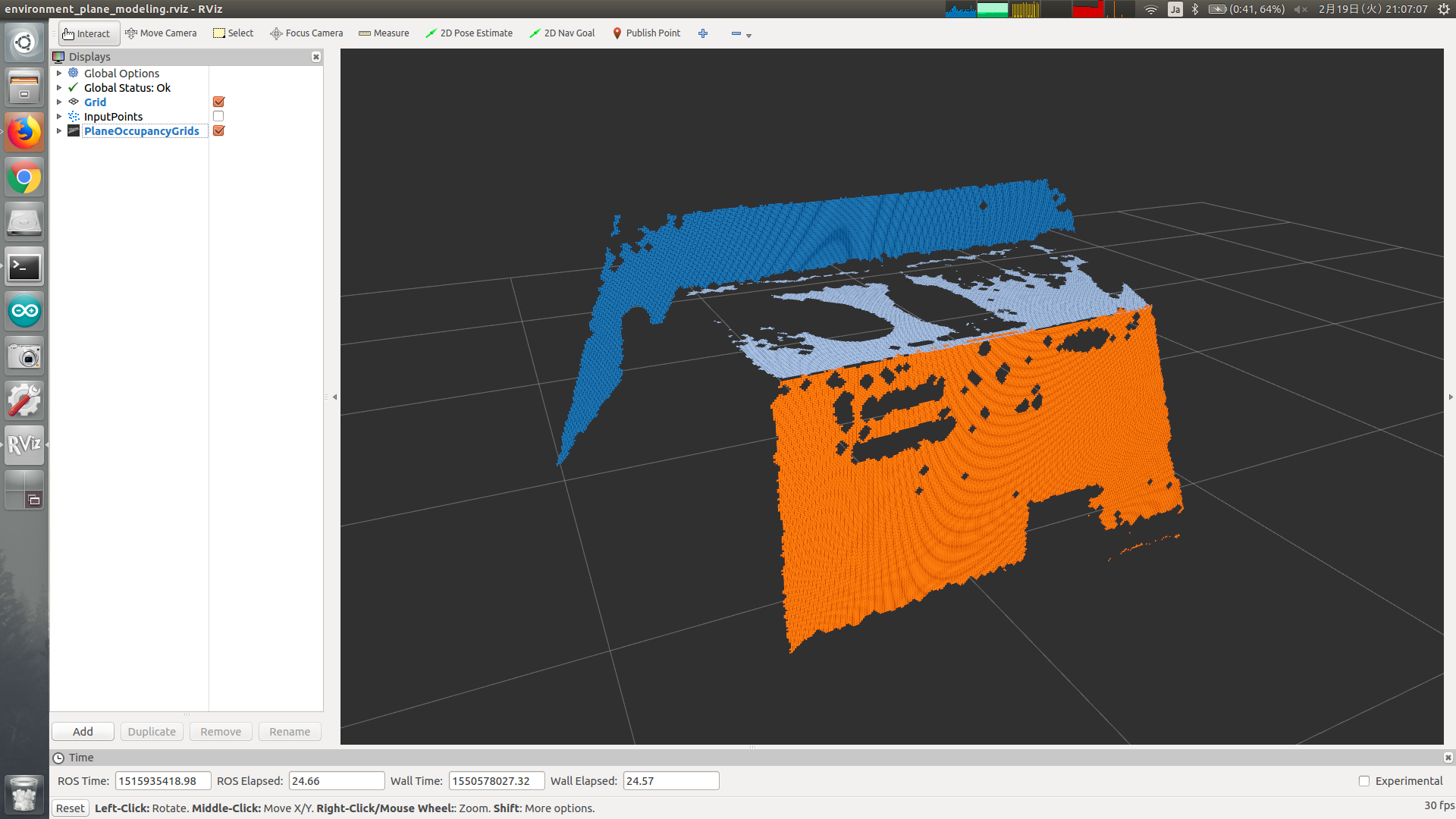

Make environment plane model as occupancy grid from point cloud, plane indices, plane polygons and plane normal coefficients.

Subscribing Topic

  • ~input (sensor_msgs/PointCloud2)

    Input point cloud which contains normal for each point.

    This topic is used for converting plane indices and coefficients into convex polygon.

  • ~input/full_cloud (sensor_msgs/PointCloud2)

    Input point cloud which contains normal for each point.

    This topic is used for building grid map.

  • ~input/indices (jsk_recognition_msgs/ClusterPointIndices)

    Input point indices of plane.

  • ~input/polygons (jsk_recognition_msgs/PolygonArray)

    Input polygons of plane.

  • ~input/coefficients (jsk_recognition_msgs/ModelCoefficientsArray)

    Input normal coefficients of plane.

These 5 topics described above must be synchronized.

  • ~input/leg_bounding_box (jsk_recognition_msgs/BoundingBox)

    Optional input bounding box.

    Used only when ~complete_footprint_region is true.

  • /move_base_simple/goal (geometry_msgs/PoseStamped)

    Optional input pose which a user wants robot to move to.

Publishing Topic

  • ~output (jsk_recognition_msgs/SimpleOccupancyGridArray)

    Occupancy grid of plane.

  • ~output/non_plane_indices (pcl_msgs/PointIndices)

    Point indices of non-plane region.

  • ~debug/magnified_polygons (jsk_recognition_msgs/PolygonArray)

    Magnified plane polygons for debugging.

  • ~debug/convex_cloud (sensor_msgs/PointCloud2)

    Vertex point cloud of convex polygons.

  • ~debug/plane_poses (geometry_msgs/PoseArray)

    Pose of plane for debugging.

  • ~debug/magnified_plane_poses (geometry_msgs/PoseArray)

    Pose of magnified plane for debugging.

  • ~debug/raw_grid_map (jsk_recognition_msgs/SimpleOccupancyGridArray)

    Occupancy grid of plane before applying morphological dilation & erosion.

  • ~debug/noeroded_grid_map (jsk_recognition_msgs/SimpleOccupancyGridArray)

    Occupancy grid of plane to which morphological filter is applied, but not enough erosion.

  • /footstep_simple/goal (geometry_msgs/PoseStamped)

    Output pose of suitable grid.

    Only published when /move_base_simple/goal is subscribed.

Parameter

  • ~complete_footprint_region (Bool, default: False)

    Set to true if you want to complete grid map by ~input/leg_bounding_box.

  • ~footprint_frames (List of String, default: [])

    Frame ID used for looking up ground plane for footprint.

    Used only when ~complete_footprint_region is true.

Sample

roslaunch jsk_pcl_ros sample_environment_plane_modeling.launch
