OrganizedEdgeDetector

What is this?

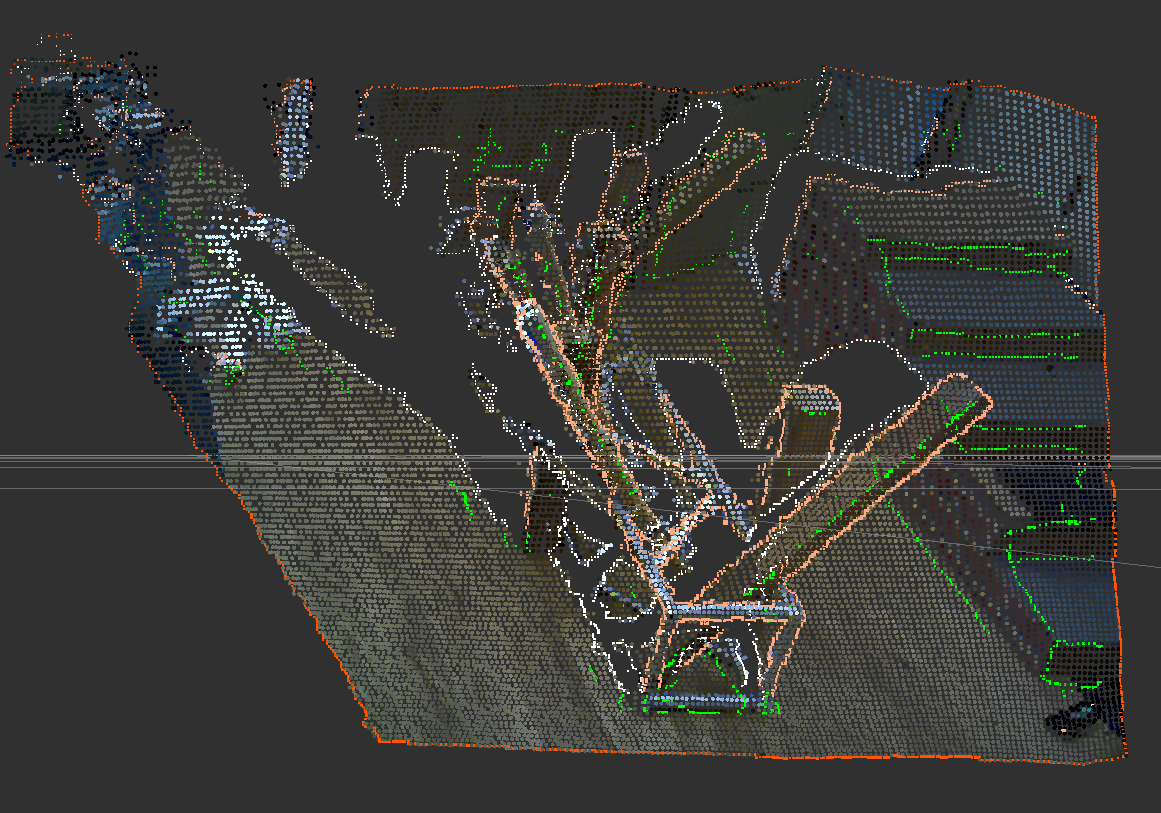

../../_images/organized_edge_detector.png

Detect edges from organized point cloud.

Note

This node requires PCL > 1.7.2.

Subscribing Topics

  • ~input (sensor_msgs/PointCloud2)

    Input organized point cloud.

Publishing Topics

  • ~output_normal (sensor_msgs/PointCloud2)

    Estimated normal of whole point cloud.

    Point type is pcl::Normal.

    This topic is published only when ~publish_normal is true.

  • ~output_nan_boundary_edge_indices (pcl_msgs/PointIndices)

  • ~output_occluding_edge_indices (pcl_msgs/PointIndices)

  • ~output_occluded_edge_indices (pcl_msgs/PointIndices)

  • ~output_curvature_edge_indices (pcl_msgs/PointIndices)

  • ~output_rgb_edge_indices (pcl_msgs/PointIndices)

  • ~output_indices (pcl_msgs/PointIndices)

    Output edge indices.

    ~output_indices means all of the edge indices above.

  • ~output_nan_boundary_edge (sensor_msgs/PointCloud2)

  • ~output_occluding_edge (sensor_msgs/PointCloud2)

  • ~output_occluded_edge (sensor_msgs/PointCloud2)

  • ~output_curvature_edge (sensor_msgs/PointCloud2)

  • ~output_rgb_edge (sensor_msgs/PointCloud2)

  • ~output (sensor_msgs/PointCloud2)

    Output point cloud of edge.

    ~output means all of the edge point cloud above.

  • ~output_straight_edges_indices (jsk_recognition_msgs/ClusterPointIndices)

    Cluster indices containing straight edges.

    This topic is published only when ~use_straightline_detection is true.

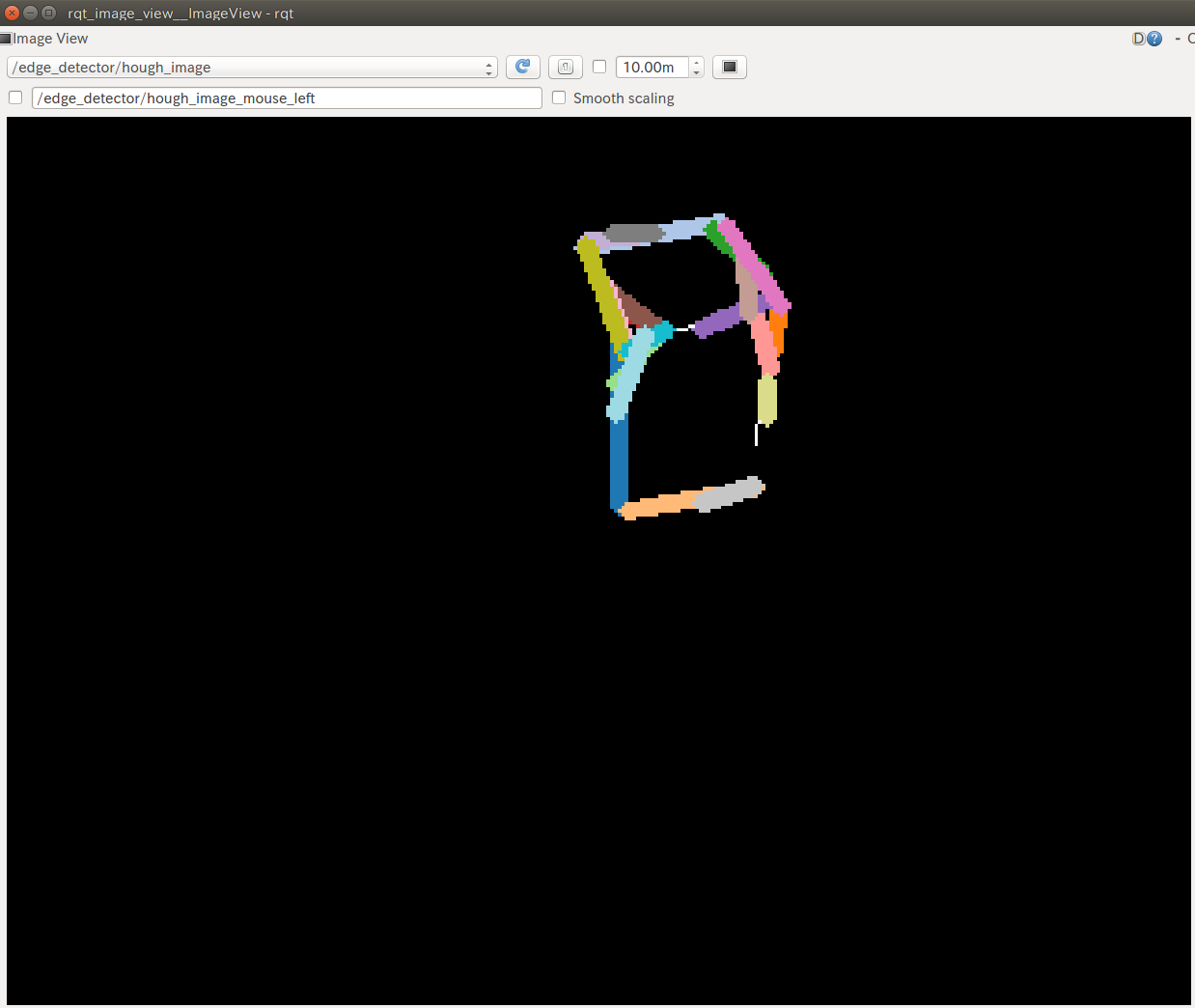

  • ~edge_image (sensor_msgs/Image)

  • ~hough_image (sensor_msgs/Image)

    Debug image. Visualize the input and output image of cv::HoughLinesP.

    These topics are published only when ~use_straightline_detection is true and ~publish_debug_image is true.

    ../../_images/organized_edge_detector_hough_image.png

Parameters

Parameters for estimating normal

  • ~publish_normal (Boolean, default: false)

    Publish normal pointcloud or not.

  • ~max_depth_change_factor, (Double, default: 0.02)

    Max depth change factor.

  • ~normal_smoothing_size, (Double, default: 20.0)

    Normal smoothing size parameter.

  • ~estimation_method, (Int, default: 1)

    Estimation method.

    Choose from AVERAGE_3D_GRADIENT(1), COVARIANCE_MATRIX(1) and AVERAGE_DEPTH_CHANGE(2).

  • ~depth_dependent_smoothing (Boolean, default: false)

    Use depth dependent smoothing.

  • ~border_policy_ignore (Boolean, default: true)

    Ignore border policy.

Parameters for estimating edge

  • ~max_search_neighbors (Int, default: 100)

    The maximum search distance for deciding occluding and occluded edges

  • ~depth_discontinuation_threshold (Double, default: 0.04)

    Threshold about depth discontinuation between neighboring points in meters.

  • ~use_nan_boundary (Boolean, default: false)

    Add NAN Boundary Edge to estimating edge type

  • ~use_occluding (Boolean, default: true)

    Add Occluding Edge to estimating edge type

  • ~use_occluded (Boolean, default: true)

    Add Occluded Edge to estimating edge type

  • ~use_curvature (Boolean, default: true)

    Add High Curvature Edge to estimating edge type

  • ~use_rgb (Boolean, default: false)

    Add RGB Canny Edge to estimating edge type

Parameters for estimating straight edge

  • ~use_straightline_detection (Boolean, default: true)

    Estimate Straight Lines or not.

  • ~rho (Double, default: 1)

    Distance resolution of the accumulator in pixels.

  • ~theta (Double, Default: 1)

    Angle resolution of the accumulator in degrees.

  • ~straightline_threshold (Int, default: 50)

    The minimum number of intersections to ‘detect’ a line.

  • ~min_line_length (Double, default: 50)

    The minimum number of points that can form a line.

    Lines with less than this number of points are disregarded.

  • ~max_line_gap (Double, default: 10)

    The maximum gap between two points to be considered in the same line.

  • ~publish_debug_image (Boolean, default: true)

    Publish Debug Images.

Sample

roslaunch jsk_pcl_ros sample_organized_edge_detector.launch
