HintedStickFinder

../../_images/hinted_stick_finder.png

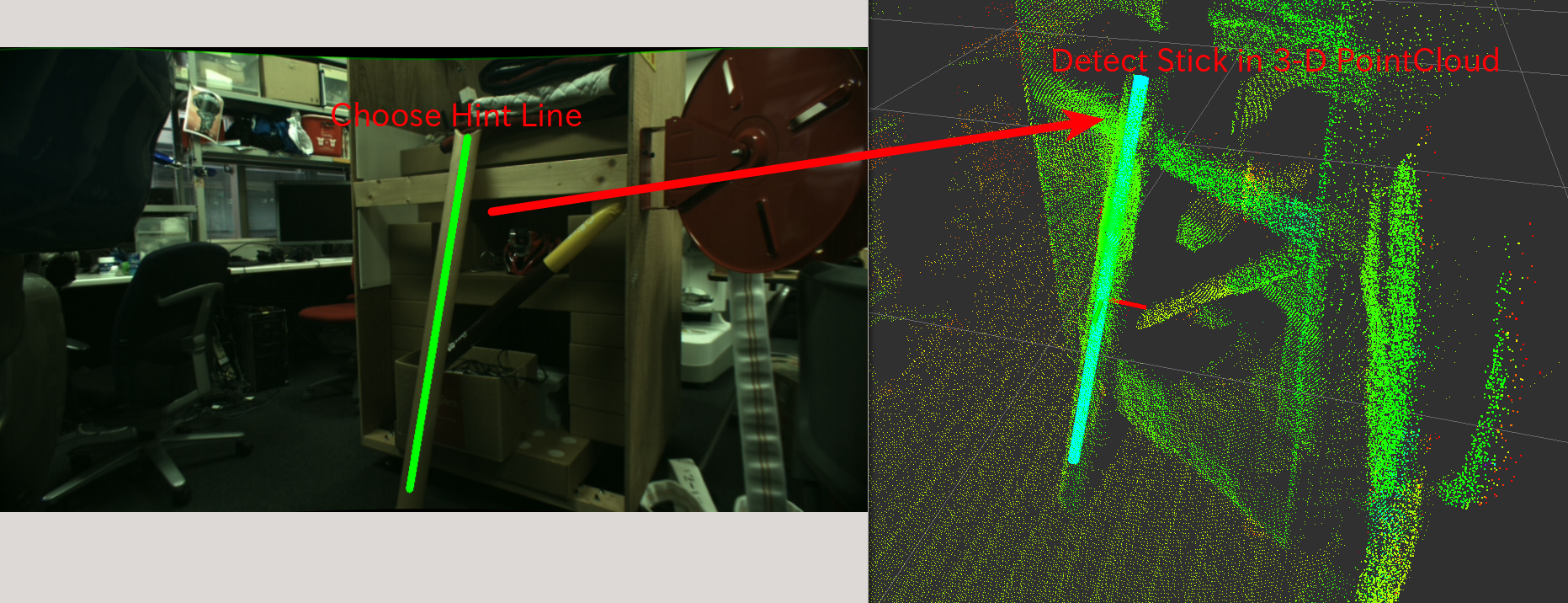

Detect a cylinder from pointcloud and line in 2-D image as hint.

Subscribing Topic

  • ~input (sensor_msgs/PointCloud2)

    Input pointcloud

  • ~input/camera_info (sensor_msgs/CameraInfo)

    Camera parameter where hint line is defined

  • ~input/hint/line (geometry_msgs/PolygonStamped)

    Hint line described in 2-D image.

    Only the first and second points in the polygon will be used.

Publishing Topic

  • ~debug/line_filtered_indices (pcl_msgs/PointIndices)

    Indices of input pointcloud which is filtered by hint line.

  • ~debug/line_filtered_normal (sensor_msgs/PointCloud2)

    Normal pointcloud of filtered pointcloud.

    This topic is advertised but not published for now.

  • ~debug/cylinder_marker (visualization_msgs/Marker)

    Marker topic to visualize detected stick

  • ~output/cylinder_pose (geometry_msgs/PoseStamped)

    Pose of detected stick.

  • ~output/inliers (pcl_msgs/PointIndices)

    Inliers of detected stick.

  • ~output/coefficients (pcl_msgs/ModelCoefficients)

    Coefficients of detected stick. The coefficients are [cx, cy, cz, dx, dy, dz, r, h].

Parameters

  • ~min_radius (Double, default: 0.05)

  • ~max_radius (Double, default: 0.2)

    Minium and maximum radius of cylinder fitting in meters.

  • ~filter_distance (Double, default: 0.2)

    Maximum distance in meters from hint line to points which can be cylinder candidate.

  • ~outlier_threshold (Double, default: 0.01)

    Outlier threshold in cylinder fitting in meters.

  • ~max_iteration (Integer, default: 100)

    Maximum number of iterations in cylinder fitting

  • ~eps_angle (Double, default: 0.1)

    This parameter is not used for now.

  • ~min_probability (Integer, default: 0.8)

    Required minimum probability of cylinder fitting

  • ~cylinder_fitting_trial (Integer, default: 3)

    The number of cylinder fitting trials when no cylinder is found

  • ~min_inliers (Integer, default: 10)

    Minimum number of inliers in cylinder fitting.

  • ~eps_2d_angle (Double, default: 0.1)

    Maximum allowable angle difference in radians between hint line and detected stick. This evaluation is done in 2-D coordinate system.

Parameters above can be changed by dynamic_reconfigure.

  • ~not_synchronize (Boolean, default: False)

    Do not synchronize ~input, ~input/camera_info and ~input/hint/line if this parameter is True. ~input/camera_info and ~input/hint/line are stored in nodelet and latest of the messages are used for new ~input pointcloud.

  • ~use_normal (Boolean, default: False)

    Do not run normal estimation inside of the nodelet and normal fields of ~input are used instead.

Sample

roslaunch jsk_pcl_ros sample_hinted_stick_finder.launch
