paper_finder

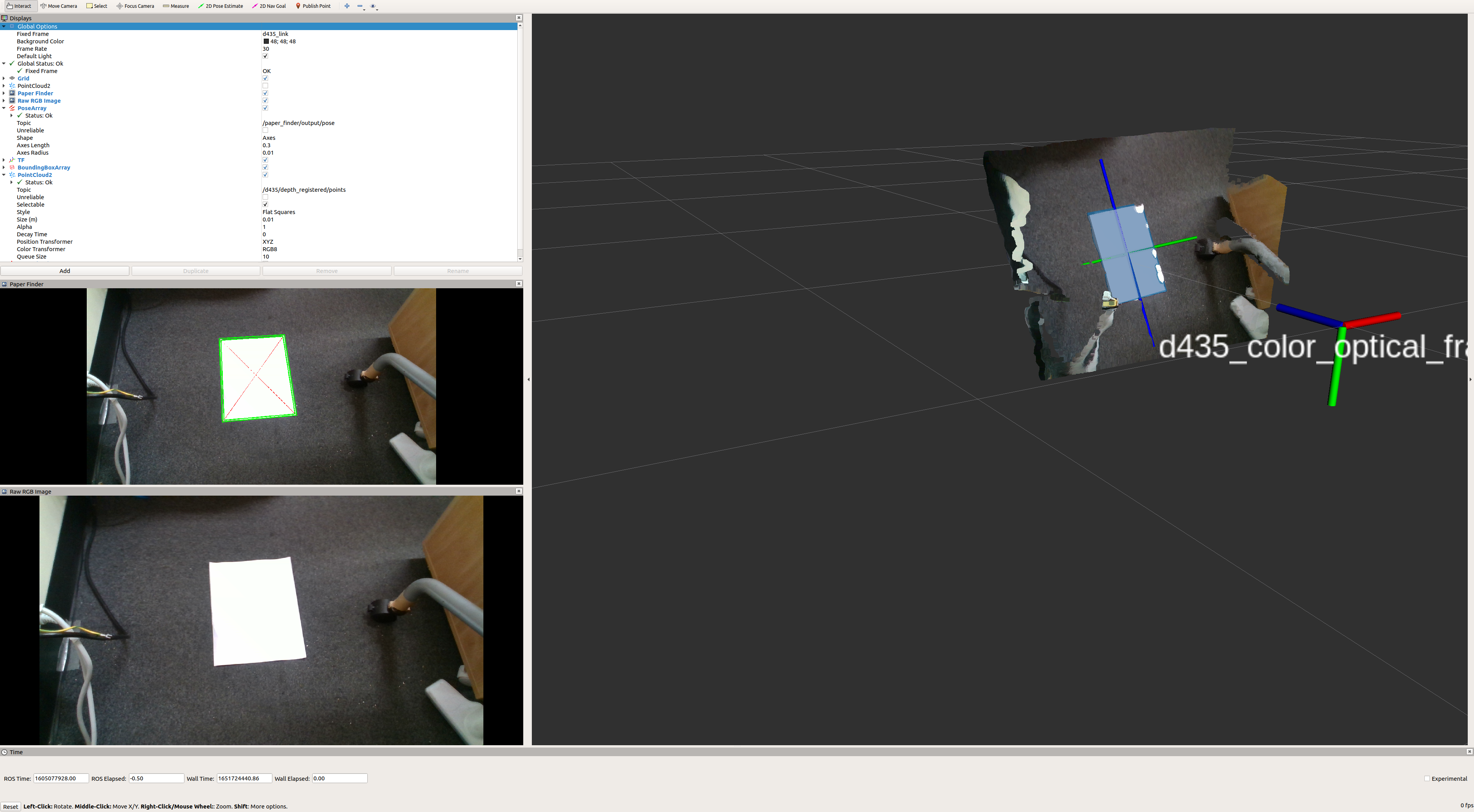

../../_images/paper_finder.png

Detect papers (rectangle) and publish posearray.

Subscribing Topic

  • ~input (sensor_msgs/Image)

    Input image.

  • ~input/depth (sensor_msgs/Image)

    Input depth image. Subscribed if ~with_depth is true.

  • ~input/camera_info (sensor_msgs/CameraInfo)

    Camera info. Subscribed if ~with_depth is true.

Publishing Topics

  • ~output/viz (sensor_msgs/Image)

    Visualization of recognition result in image.

  • ~output/pose (geometry_msgs/PoseArray)

    Recognized paper pose.

  • ~output/boxes (jsk_recognition_msgs/BoundingBoxArray)

    Recognized Bounding Box.

  • ~output/length (std_msgs/Float32MultiArray)

    Recognized the rectangle sides of paper.

Parameters

  • ~angle_tolerance (float default: 286.4788975654116)

286.4788975654116 = np.rad2deg(5.0)

  • ~area_tolerance (float default: 0.1)

  • ~rect_x (float default: 0.210)

0.210 [m] is the width of A4 paper.

  • ~rect_y (float default: 0.297)

0.297 [m] is the hight of A4 paper.

  • ~length_tolerance (float default: 0.04)

  • ~queue_size (int default: 10)

  • ~with_depth (bool default: true)

    If true, use the depth of the detected square apex position for pose estimation.

  • ~approximate_sync (bool default: true)

    If true, approximately synchronize inputs. Required if ~with_depth:=true.

  • ~slop (float default: 0.1)

    The slop time in second for message_filters.ApproximateTimeSynchronizer. Required if ~with_depth:=true and ~approximate_sync:=true.

Sample

roslaunch jsk_perception sample_paper_finder.launch
